Prikazuje se 1 do 10 od 19 stavki
Prikaz 10 | 20 | 50 | 100

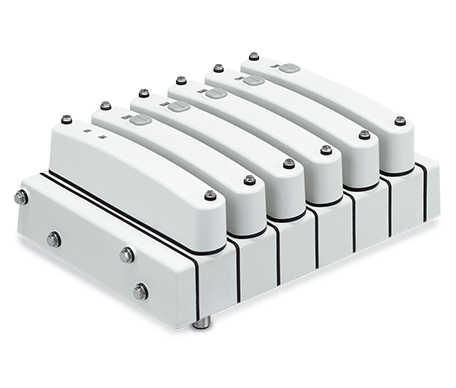

Clean Design Manifold Valve

Serija JSY
Datum Oct/2021

Clean Design Manifold Valve

  • Low fluid accumulation, Easy to clean
  • Large flow rate: 1,600 l/min (ANR)
  • Enclosure: IP69K
  • NSF-H1 grease
  • External parts: FDA-compliant materials
    (Metal parts are made of stainless steel 316 with high anti-corrosion performance)
  • Wiring: Lead wire/Fieldbus type (IO-Link).

Vacuum Manifold for Fieldbus System

Serija ZKJ
Datum Oct/2021

Vacuum Manifold for Fieldbus System

  • Fieldbus-compatible
    Requires no input/output unit. Space saving
    Reduced wiring time
    Compatible protocol: PROFINET
  • Energy saving ejector: Air consumption reduced by 90 %
  • Supply valve: N.O. specification
    Can hold vacuum even when the power goes out or is turned off (Supposing the supply pressure is being maintained)
    Prevents the sudden dropping of workpieces (Supposing the supply pressure is being maintained)
  • IP65: Dust-tight/Water-jet-proof.

3-Port Solenoid Valve Modular Type/Residual Pressure Release Valve with Detection of Main Valve Position

Serija VP
Datum Oct/2021

3-Port Solenoid Valve Modular Type/Residual Pressure Release Valve with Detection of Main Valve Position

  • Can be connected to F.R.L. units (AC-D series)
    With main valve position detection function
  • Flow rate characteristics Q [l/min (ANR)]
    VP546: 1246
    VP746: 2001
  • A model with a soft start-up function is also available
  • A variety of safety limit switches (Made by OMRON or Rockwell Automation) are available
  • Features a check valve built into the pilot flow path
    (Supports pilot pressure drops caused by pressure fluctuations on the inlet side).

High Pressure Coolant Valve

Serija SGH
Datum Oct/2021

High Pressure Coolant Valve

  • Max. operating pressure: 3 MPa, 7 MPa, 10 MPa [New], 14MPa [New]
  • Applicable to high-speed grinding and long drilling processes
  • Coolant valve for high-pressure coolant liquid that is ideal for lubrication, dust blowing, and cooling
  • Service life: 3 million cycles (Based on SMC's test conditions)
  • Water hammer: Reduced by 20 % (Compared to existing model, VNH series)
  • Power consumption: 0.35 W (24 VDC, V116)
  • The 3-port dual pressure type has been standardized.

Electric Actuator Rod Type

Serija LEY
Datum Oct/2021

Electric Actuator Rod Type

  • Max. force: 12000 N, Work load: 1200 kg, Max. stroke: 1000 mm
  • Can be mounted in accordance with ISO 15552
  • Modify the force/speed specifications
    (Change specifications by changing or removing the reducer)
  • Motorless type
  • An auto switch can be mounted.

Air Cylinder ø20, ø25, ø32, ø40

Serija CM2
Datum Oct/2021

Air Cylinder ø20, ø25, ø32, ø40

  • Cylinder with rod end bracket is standardized
  • Interchangeable in mounting with the existing model
  • Various mounting bracket options
    Mounting brackets suitable for various installation conditions
    Improved mounting flexibility
  • Part numbers for products with a rod end bracket and/or a pivot bracket available
    It is not necessary to order a bracket for the applicable cylinder separately
  • Easy fine adjustment of auto switch position
  • Overall length is shortened with boss-cut type
  • With auto switch (CDM2-Z1).

Pin Cylinder: Single Acting, Spring Return ø4, ø6, ø10, ø16

Serija CJP
Datum Oct/2021

Pin Cylinder: Single Acting, Spring Return ø4, ø6, ø10, ø16

  • A short-stroke miniature cylinder with a shorter overall length
  • Rod end cap can now be ordered with the cylinder
  • One-touch fitting can be connected. (Panel mount type)
  • Applicable for the change of the rod end shape (-XA#) (Simple specials)
  • 16 mm bore size is now available. (Existing product: 15 mm).

Vacuum Gripper for Collaborative Robots ZXP7-X1-KA for the Kawasaki Heavy Industries, Ltd. duAro 1, 2 Series

Serija ZXP7
Datum Oct/2021

Vacuum Gripper for Collaborative Robots ZXP7-X1-KA for the Kawasaki Heavy Industries, Ltd. duAro 1, 2 Series

  • A compact, lightweight all-in-one vacuum gripper
  • Integrated vacuum ejector, air supply/release valve, pressure switch, and cups
  • Integrated vacuum ejector, pressure switch, and cups
  • Standards: Conforming to ISO 9409-1-31.5-4-M5
  • A wide variety of cup variations are available to support a wide range of workpieces.

Direct Operated/Pilot Operated 2-Port Solenoid Valve

Serija JSXD/JSXM
Datum Sep/2021

Direct Operated/Pilot Operated 2-Port Solenoid Valve

  • Improved environmental resistance due to the stainless steel coil cover [IP67 enclosure]
  • Body material: Stainless steel, Brass/Bronze, Aluminium
  • Environmental resistance: IP67 enclosure
    (IP65 for models with a DIN terminal)
  • Space saving
    Compact: Valve volume reduced by 25 % (Compared with the existing model)
    Lightweight: Weight reduced by 30 % (Compared with the existing model)
  • Energy saving
    Coil force: 10 % increase (Compared with the existing model)
    Power consumption: 14 % reduction (Compared with the existing model)
  • 360° lead wire insertion and removal is possible
  • Can be connected to modular type F.R.L. units (JSXM).

3-Color Display Digital Flow Switch for Large Flow

Serija PF3A
Datum Sep/2021

3-Color Display Digital Flow Switch for Large Flow

  • A 4-screen display digital flow switch with pressure/temperature sensor (modular type) has been added. [New]
  • Applicable fluid: Air, N2
  • Flow ratio 100:1
    A wide range of flow measurement is possible with 1 product
  • Improved resistance to moisture and foreign matter
  • IO-Link compatible.
