Stainless Steel Cylinder/Non-adjustable Air Cushion Type Series HF2A-CG5 Product Description Features catalogue Stainless Steel Cylinder/Non-adjustable Air Cushion Type Equipment for the Food Manufacturing IndustryAll stainless steel specifications (External parts: Stainless steel 304)4 times better durability in environments where it may come into contact with water dropletsNon-adjustable air cushionMounting interchangeability between the stainless steel cylinder, CG5-S series. Catálogo de características
Angle Seat Valve / Air Operated Type Series JSB Product Description Features catalogue Angle Seat Valve / Air Operated Type High pressure type has been added [New]Low pressure loss due to angle seat structure!Long service life: 10 million cycles (Air, Water), 3 million cycles (Steam)Large flow rate A large flow rate is possible due to the optimized flow channel shape (Cv factor: approx. 2.5 times) Compact: Height 166 mm (Port size: 1") Abundant series variations of 7 sizes All-in-One (Stainless steel 316L equivalent) Air, Water, Steam. Catálogo de características
Compact Position Sensor Series D-MPG Product Description Features catalogue Compact Position Sensor Detects the stroke position of compact actuators such as air grippersRepeatability: 0.1 mmCompact sensor head and separate teach unitSame shape as the D-M9# solid state auto switchAnalog outputSwitch outputIO-Link compatible. Catálogo de características
Turn-lock Type All Resin Fitting Series KY Product Description Features catalogue Turn-lock Type All Resin Fitting Prevents leakage due to insufficient tube insertionEnsure secure tube insertionVisibility of tube grip status is possibleGrease-freeFluid: Air, Nitrogen, Water, Pure water, Some chemicalsOperating temperature range: 0 to 80 °CAll resin (Non-Metal) (except rubber). Catálogo de características
[Compatible with Manifold Controller] Electric Actuators Slider Type/Rod Type/Guide Rod Type Series LE2F##H/LE2Y(G)#H Product Description Features catalogue [Compatible with Manifold Controller] Electric Actuators Slider Type/Rod Type/Guide Rod Type Rotary Table Type LE2R#H Series has been added [New]Compatible with manifold controllerUp to 16 axes can be connectedAnnual CO2 emissions reduced by up to 38 % through motor control optimization (SMC comparison) 8.7 kg-CO2e/year (14.1)* The numerical values vary depending on the operating conditionsBattery-less absolute encoder typeRestart from the last stop position is possible. Catálogo de características
Magnet Buffer Series ZP3B#M Product Description Features catalogue Magnet Buffer Stable buffer reaction force during strokeAdsorbs workpieces with different heights, Reduces the impact applied to a workpieceLow particle generation No particle generation due to the friction of a spring (spring-less structure)Non-rotating Reduces rotation by 4-pole magnetsCopper and zinc-freeCompatible with secondary battery manufacturing processes. Catálogo de características
ISO Standards (21287) Compact Cylinder Series C55/CD55 Product Description Features catalogue ISO Standards (21287) Compact Cylinder Smooth cylinder (C55Y) has been added [New]Made of stainless steel (-XC6) has been added [New]With coil scraper (-XC35) has been added [New]Auto switch mounting groove: T-slot type (-X1439) has been added [New] Bore sizes ø 12 and ø 16 have been added [New] ∗ These are not subject to ISO Standards (21287)ISO Standards (21287)1.8 times the anti-lateral load capacity The allowable lateral load has been improved by changing the material of the bushing (For ø 20)Increased the standard product's maximum stroke limit (to 300 mm)Standardization of the double rod (C55W) type, smooth cylinder (C55Y), simple specials, and made-to-order options Change of rod end shape (-XA□) Heat-resistant cylinder (–10°C to 150°C) (-XB6) Low-speed cylinder (5 to 50 mm/s) (-XB13). Catálogo de características
Suction Cup Series ZP3C Product Description Features catalogue Suction Cup Material: FS61 (Fluoro-based rubber) improves abrasion resistance ∗ More than 4 times the abrasion resistance of SMC's urethane suction cupsReduced suction of foreign matter, such as paper particles, due to mesh filter Can be replaced without tools2.5-stage bellows type Optional inner ring and retainer. Catálogo de características
Air Saving Impact Blow Gun Series IBG Product Description Features catalogue Air Saving Impact Blow Gun Various functions Pulse function [New] Adjuster function with indicatorIncreased impact force due to higher peak pressure Reduces air consumption and operation timeApplication: It is capable of eliminating, in a short period of time, the dust, etc., that is difficult to remove with the existing blow gun. Catálogo de características

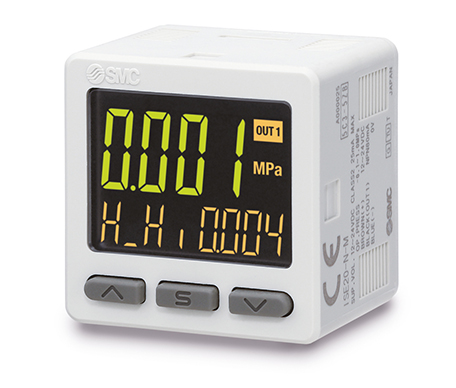

3-Screen Display High-Precision Digital Pressure Switch Series ZSE20#(F)/ISE20# Product Description Features catalogue 3-Screen Display High-Precision Digital Pressure Switch A low differential pressure range type has been added to the 20A series [New]An M12 connector type has been addedA low pressure range type has been addedIntegrated R1/8 fitting with bottom wiring entryVisualization of settingsSimple 3-step settingEasy screen switchingIt is possible to change the settings while checking the measured valueDelay time:1.5 ms or lessIO-Link compatible. Catálogo de características
