Mounting Kit for Multi-Axis System Серия LEA Описание на продукта Каталожна информация Mounting Kit for Multi-Axis System Creation of an XYZ unit Easy system construction using the model selection software Compatible actuators X-Y-axis: LEFS series, LEFB series, LEKFS series Z-axis: LEYG series Compatible controllers/drivers (For single axis)JXC51/61 series, JXC91/E1/P1/D1/L1/M1 series, LECS#‐T/LECY# series. Каталожна информация
Air Servo Cylinder Серия IN-777 Описание на продукта Каталожна информация Air Servo Cylinder FOUNDATION Fieldbus communication has been added as a communication protocol [New] Capable of air cylinder multipoint positioning and control Fast response and high positioning repeatability Positioning repeatability: ±0.5 mm Easier maintenance due to unitisation Built-in self-diagnosis function (LED lamp and signal output) Emergency stop of the piston when the air or power supply is cut Supports 4-20 mA/HART communication as the communication protocol. Каталожна информация
Compressed Air Preparation Filter/Stainless Steel Type Серия AFF#DS/AM#DS/AMD#DS Описание на продукта Каталожна информация Compressed Air Preparation Filter/Stainless Steel Type Improved environmental resistance with the stainless steel exterior Flow capacity: 14.5 m³/min (ANR) ∗ For AFF90DS / AM90DS / AMD90DS Pressure drop: 5 kPa or less Easier replacement of the element Compliant with ISO 8573 Compressed Air Purity Class. Каталожна информация
Micro Mist Separator with Pre-filter Серия AMH-D Описание на продукта Каталожна информация Micro Mist Separator with Pre-filter Pressure drop reduced by up to 50 %. Contributes to energy saving Easier replacement of the element. The clogging switch notifies when replacement is required Lightweight: Max. 50 % lighter (compared with the existing model) Color-identifiable elements Transparent bowl guard (2-layer construction) The inside is visible from 360°The bowl is completely protected from the environment, allowing for improved safety Flow capacity increased by up to 50 % (compared with the existing model). Каталожна информация
Power Clamp Cylinder Серия CKZ5T Описание на продукта Каталожна информация Power Clamp Cylinder Bore sizes Ø 40 and Ø 80 have been added [New] Weight reduced by up to 23 %Aluminum body with greatly reduced weight A new structure has achieved downsizingOverall length reduced by 49 mm max.Depth reduced by 17.3 mm max. (Interchangeable with existing product CKZ3T in terms of installation) Weight reduced by up to 23 %Aluminum body with greatly reduced weight High clamping force 4000 N (Ø 63, Arm length: 100 mm, 0.5 MPa) Manual lock release operability has been improved Spatter-proof constructionFully enclosed structure by means of an aluminum body. Каталожна информация
Air Cylinder Серия CG1-Z1 Описание на продукта Каталожна информация Air Cylinder A single acting type / A direct mount type / An end lock type has been added [New] Improved piping flexibility Cylinder with rod end bracket is standardised Interchangeable in mounting with the existing model Various mounting bracket options Part numbers for products with a rod end bracket and/or a pivot bracketIt is not necessary to order a bracket for the applicable cylinder separately. Каталожна информация
Remote Control Valve (Electric speed controller) Серия PFES Описание на продукта Каталожна информация Remote Control Valve (Electric speed controller) The speed controller is equipped with a motor Speed controller capable of “remote control” by “electrification” Large reduction in equipment setup time and downtime Easy maintenance Reduced adjustable work-hours Improved productivity Reduced down time. Каталожна информация
Pulse Blow Unit Серия PU Описание на продукта Каталожна информация Pulse Blow Unit Intermittent pulse blow improves removal efficiency by 35 % compared with continuous blow. (∗ Based on the test by SMC.) CO₂ emissions (Air consumption): 50 % reduction Possible to adjust operating frequency External power supply is unnecessaryA pulse blow is possible by the air supply Low pressure loss is achieved A large effective area (10.3 mm²) helps reduce the air consumption Possible to use it with its bracket mounted Combined use with a blow gun Compact, Lightweight Weight：47 g Valve volume：59.4 mm × 24 mm × 28 mm Каталожна информация
Flow Controller for Water Серия FC3W Описание на продукта Каталожна информация Flow Controller for Water IO-Link compatible [New] Rated control flow rate range:A 5 to 40 (l/min) specification has been added [New] For the stepless control of water flow rate in proportion to electrical signals Flow rate control accuracy: ±5 % F.S. Response time: 10 s or less Grease-free. Каталожна информация

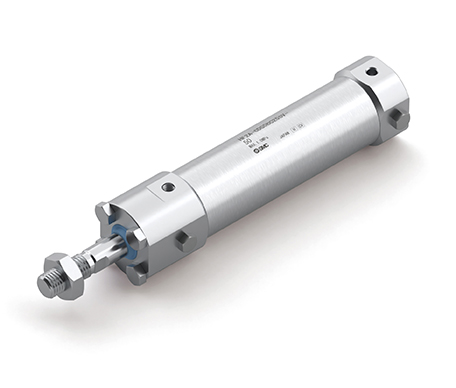

Stainless Steel Cylinder Серия CM5 Описание на продукта Каталожна информация Stainless Steel Cylinder External parts made of stainless steelStainless steel is used for the cylinder body, mounting bracket, mounting bolt, and accessories Compact and lightweight (compact type) Overall length reduced by 21 %* (175 mm→139 mm) Weight: Max. 50 % reduction* (0.75 kg→0.38 kg) ∗ Compared with the existing CG5-S series at 32 mm bore and 50 mm stroke 4 times or more life expectancy under the water droplet scattering environment*(improved water-resistant type) ) ∗ Compared to the standard CM2 product seriesGrease for use in food machinery: NSF-H1 certified greases are availableSeal material: FKM or NBR are available. Каталожна информация
