Electric Actuator/Large Slider Type Belt Drive Series LET-X11 Product Description Features catalogue Electric Actuator/Large Slider Type Belt Drive Max. work load: 240 kg (Size 100)/75 kg (Size 80)Stroke: Up to 3000 mm (Standard)Max. speed [mm/s]: 4000 (Size 100), 2160 (Size 80)Max. acceleration/deceleration [mm/s2]: 20000Simplified belt replacementSolid state auto switches are mountable. Features Catalogue
Electro-Pneumatic Regulator / High Flow Rate Series ITV1100/2100/3100 Product Description Features catalogue Electro-Pneumatic Regulator / High Flow Rate For the stepless control of air pressure in proportion to electrical signalsFlow rate: Max. approx. 5 times(Compared with the existing model)Sensitivity: ±0.2 % F.S. or lessLinearity: ±1 % F.S. or lessHysteresis: 0.5 % F.S. or less. Features Catalogue
Plug-in Electro-Pneumatic Regulator / Manifold Type Series IITV23 Product Description Features catalogue Plug-in Electro-Pneumatic Regulator / Manifold Type Connects the electro-pneumatic regulator and the fieldbus device to the same manifoldThis results in reduced wiring, less man hours for piping and a more compact sizeCompactInstallation area: 20 % reduction, Occupied volume: 10 % reductionGain settingSensitivity settingRemote control and monitoring are available. Features Catalogue
Compact Compressor Series CRP Product Description Features catalogue Compact Compressor Supplies compressed air in an environment with no air source such as cobots, AGV and AMRsCompact: 154 mm (Width) x 134 mm (Height) x 100 mm (Depth)Lightweight: 3.5 kg (Compressor: 3.1 kg, Controller: 0.4 kg)A single unit can be used to provide positive or vacuum pressure (vacuum pump)Max. discharge pressure: 0.55 MPaUltimate vacuum pressure: −70 kPaOil-freeNoise: 55 dB or less (When the silencer ANB1-01 is installed)(When supplying positive pressure)Max. flow rate of 10 L/min (ANR). Features Catalogue
Air Saving Impact Blow Valve Series IBV Product Description Features catalogue Air Saving Impact Blow Valve Increased impact force due to higher peak pressureInstantaneous air blow reduces CO2, air consumption, and operation timePeak pressure: 2 to 3 times or moreCO2/Air consumption: 93 % reductionOperation time: 97 % reduction. Features Catalogue
Wireless System Series EXW1/EX600-W Product Description Features catalogue Wireless System EtherCat has been added to the compact type EXW1 series [New]Noise resistanceUses the 2.4 GHz ISM frequency bandFrequency hopping: Every 2 ms (Fastest)Communication cables not requiredReduced wiring work, space, and costMinimized disconnection riskProvides communication stability in FA environmentsCompact and lightweight (EXW1)Volume: Approx. 86 % reduction, Weight: Approx. 87 % reductionModular connection is possible (EX600-W). Features Catalogue
Proportional Control Valve Series JSP Product Description Features catalogue Proportional Control Valve Control the flow rate smoothly according to the current (With air)Repeatability: ±3 % F.S. or lessSensitivity: 2 % F.S. or less2 body types: Body ported, Base mountedIP67 enclosureSeal material: FKMChoice of body material: Stainless steel, BrassElectrical entry: Grommet, Conduit, DIN terminal. Features Catalogue
Modular Connection Type Compressed Air Preparation Filter/Activated Carbon Filter Series AFF/AM/AMD/AMK Product Description Features catalogue Modular Connection Type Compressed Air Preparation Filter/Activated Carbon Filter With clogging switch (Excludes the AMK) [New]An element service indicator has been added(Excludes the AMK)Compressed air purity class: ISO 8573Weight reduced by 50 %AFF/AM 20: 0.19 kg (Existing model: 0.38 kg)Face-to-face and depth dimensions reduced by 30 %The increased air flow capacity due to a reduced pressure drop contributes to energy savingFlow capacity increased by 50 %Pressure drop reduced by up to 50 %. Features Catalogue
Flow Controller for Air Series PFCQ Product Description Features catalogue Flow Controller for Air Flow rate control range: 9 to 300 l/min*Operational differential pressure range: 0.05 to 0.5 MPaTime to reach the set flow rate: 0.5 seconds or less(When the operating differential pressure is 0.3 MPa and the flow rate is set to 300 l/min)Flow rate accuracy: ±3 % F.SGrease-freeLightweight 850 g3-screen display digital flow monitor PFG310-X105. Features Catalogue

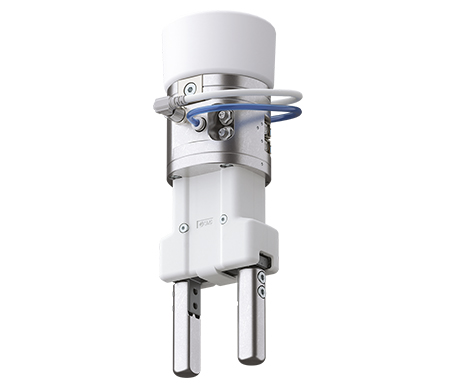

Air Grippers for Collaborative Robots Series RMH# Product Description Features catalogue Air Grippers for Collaborative Robots Unitization of the peripheral devices required for gripper drivingOperation is possible simply by connecting 1 air supply tube and 1 electrical wireBuilt-in solenoid valve, exhaust throttle valve with silencer, auto switch, fitting, etc.3 types of grippers available for use with a variety of workpiecesCan be used with the collaborative robots of 12 companiesManual changer built in as standardAllows for easy tool changing and labor savingAir consumption reduced by up to 80 %. Features Catalogue
