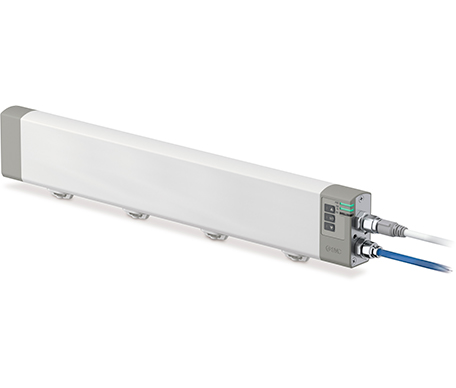

[Dustproof and water-resistant] Ionizer / Bar Type

Серия IZSW10

[Dustproof and water-resistant] Ionizer / Bar Type

  • Dustproof and water-resistant (IP66 equivalent)
    Ionizer unit can be washed
    ∗ Static neutralisation is not available while spraying with water
  • Replaceable fittings
  • Air purge increases static neutralisation distance by 3 times
  • Select the ion generation mode for the application
    DC: Rapid static neutralisation
    Dual AC: Minimal uneven static neutralisation.

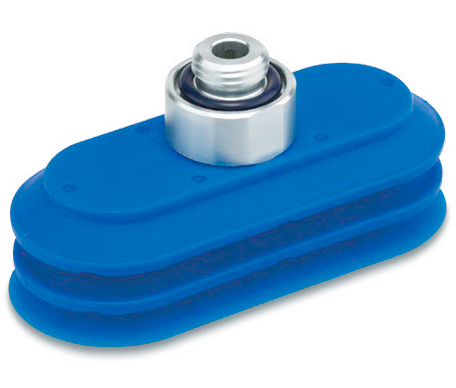

Suction Cup / Oval Bellows Type

Серия ZP3P-WJT

Suction Cup / Oval Bellows Type

  • Allows for the transfer of long, thin packaged workpieces containing liquids, powders, etc.
  • 2 types of attachments available
    Attachment: Reduces cup deformation
    Flat attachment: Reduces wrinkles
  • Uses materials that comply with food contact surface laws and regulations and does not use lubricants or rust proof agents
  • Blue coloured cup
    Easy to distinguish the suction cup by colour during contamination inspection
  • Allows for multiple cups to be replaced by a single oval-shaped cup.

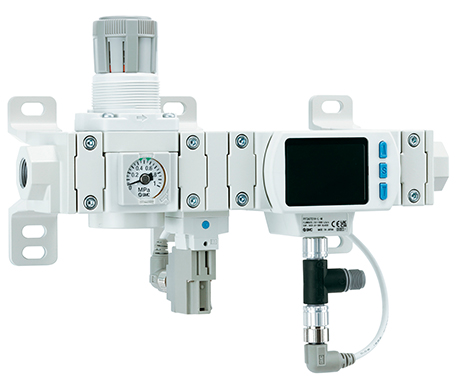

Air Management System

Серия AMS20X/60X-X2044/X2045

Air Management System

  • IO-Link compatible
    Monitoring compressed air condition via IO-Link and reduction of air consumption
  • Standby regulator＋Digital flow switch
    [Suffix: -X2044]
    Operation mode ⇔ Standby mode
  • Digital flow switch＋Residual pressure relief 3-port solenoid valve (With soft start-up function)
    [Suffix: -X2045]
  • Operation mode ⇔ Isolation mode.

e-Actuator Easy to Operate Integrated Controller. Slider Type/Rod Type/Guide Rod Type

Серия EQFS#H/EQY#H/EQYG#H

e-Actuator Easy to Operate Integrated Controller. Slider Type/Rod Type/Guide Rod Type

  • An IO-Link type has been added [New]
  • A guide rod type (EQYG#H series) has been added
  • Communication cable with Push-Pull connector
  • Easy to set up, just like air equipment
  • Downsized with Integrated Controller, Wiring saving, Labor saving
    - Programless
    - Reduced adjustment time
  • Annual CO2 emissions reduced by up to 59 % through motor control optimisation [5.8 kg-CO2e/year (14.1)]
    * The numerical values vary depending on the operating conditions.

[Compatible with Manifold Controller] Electric Actuators

Серия LE2S(H)/LE2F/LE2Y(G)/LE2R

[Compatible with Manifold Controller] Electric Actuators

  • Slide Tables LE2S(H)#H Series has been added [New]
  • Compatible with manifold controller
    Up to 16 axes can be connected
  • Annual CO₂ emissions reduced by up to 38 % through motor control optimisation (SMC comparison)
    8.7 kg-CO₂ e/year (14.1)
    *The numerical values vary depending on the operating conditions
  • Battery-less absolute encoder type
    Restart from the last stop position is possible.

Direct Operated/Pilot Operated 2-Port Solenoid Valve

Серия JSX/JSX#

Direct Operated/Pilot Operated 2-Port Solenoid Valve

  • Water Hammer Relief JSXR Series has been added [New]
  • Air Water, Oil, Steam, Heated, water, Vacuum
  • Improved environmental resistance due to the stainless steel coil cover [IP67 enclosure/NEMA4X*] ∗ IP65 for models with a DIN terminal
  • CO₂ emissions (Power consumption): 71 % reduction
  • Compact: Valve volume reduced by 25 %,
    Lightweight: Weight reduced by 30 % (Compared with the existing model)
  • Energy saving
    Coil force: 10 % increase,
    Power consumption: 14 % reduction (Compared with the existing model)
  • 360° lead wire insertion and removal is possible
  • Improved weather resistance in outdoor environments.

Clamp Cylinder with Lock

Серия CLK2

Clamp Cylinder with Lock

  • Maintains a clamped or unclamped state when air supply pressure drops or residual pressure is released
  • Can be locked at any position within the entire stroke. Locking is possible at any desired position
    Able to easily accommodate changes in workpiece thickness
  • Overall length: Max.7 mm shorter, Weight: Max.7 % lighter
  • Able to maintain an unlocked state
    Assembly and maintenance simplified
  • Various types of auto switches can be mounted.

Magnetically Coupled Rodless Cylinder / Direct Mount Type

Серия CY3R-Z

Magnetically Coupled Rodless Cylinder / Direct Mount Type

  • Improved lubrication
    A Lube-retainer is installed to support lubrication retention on the piston and to ensure a lubrication film
    (Bore size: Ø 15 to Ø 63)
  • Stable operation
    Lengthening of the wear ring on the body side by, 30 % at maximum, helps to achieve smooth movement
  • Improved piping flexibility
    Improved piping flexibility with the addition of a right side centralised piping type
  • The specifications, magnet holding force, and mounting dimensions are the same as those of the existing CY3R series model.

ISO 13849-1 Certified Safe Exhaust Valve Modular Connection Type

Серия VPX400

ISO 13849-1 Certified Safe Exhaust Valve Modular Connection Type

  • Double common specification has been added [New]
  • Safety standard ISO 13849-1 compliant
    (Corresponding to categories 3 and 4)
  • Exhaust flow rate characteristics [l/min (ANR)]∗ At 0.6 MPa
    10,500 (VPX406-A3)
    13,000 (VPX406-A3)
    15,000 (VPX406-A6)
  • Space saving & lightweight: 3 functions have been integrated
    Dual residual pressure release valve + Soft start-up valve + Main valve inconsistency detection
  • Modular connection is possible
    (AC30/40/50/60-D series).
